Coin Cycler
Cycler Coin Cycler
본문

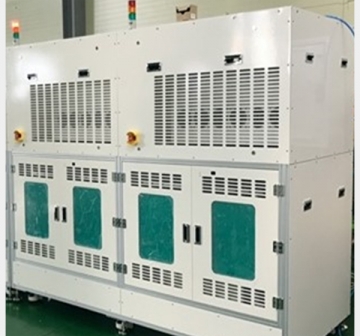

This equipment is used for performance testing and quality control of Coin batteries and provides optimal solution for monitoring charge/discharge data.
| DESCRIPTION | SPECIFICATION |
|---|---|
| Voltage Range | 0-5V |
| Current Range | 100mA, 200mA, 300mA |
| Voltage Accuracy | ±0.05% FS |
| Current Accuracy | ±0.05% FS |
| Channel working mode | Independently |
| Working mode | CC, CV, CC/CV |
| Current response time | <10ms |
| Communication | LAN |
| Main power | 1P 220V |
