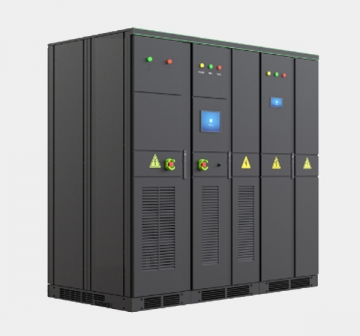

High Voltage Pack
Pack High Voltage Pack
본문
This equipment is used for performance testing and quality control of Pack batteries and provides optimal solution for monitoring charge/discharge data.
| DESCRIPTION | SPECIFICATION |
|---|---|
| Voltage Range | 750V-1500V |
| Current Range | 200A/300A/400A/500A/600A/1000A |
| Voltage Accuracy | ±0.1% FS |
| Current Accuracy | ±0.1% FS |
| Resolution | 1mV |
| Channel working mode | Independently |
| Working mode | CC, CV, CC/CV, CP, CR |
| Current response time | <20ms |
| Communication | LAN |
| Rack size | 1600~2800 * 1100 * 2000mm (1Rack) |
